Hydraulic Proportional Valve Animation

Get smooth accurate control of your pressure and flow applications with our range of proportional screw in cartridge sicv valves. Industrial and mobile hydraulic proportional valves enable a precise directional or flow control. Parkers proportional valves employ powerful valve technologies and are well suited for a variety of applications where accuracy and efficiency are a must.

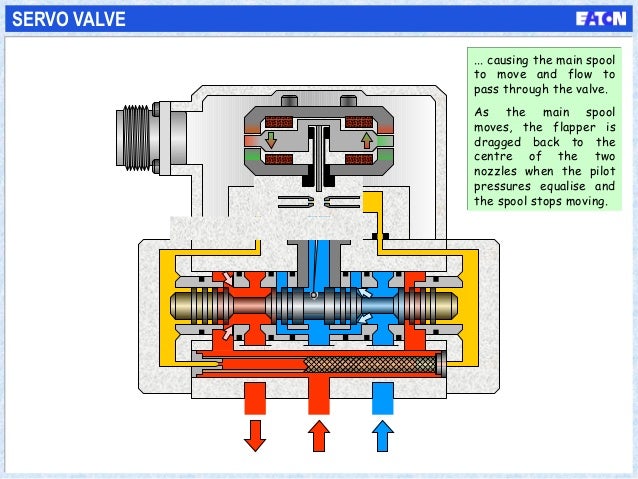

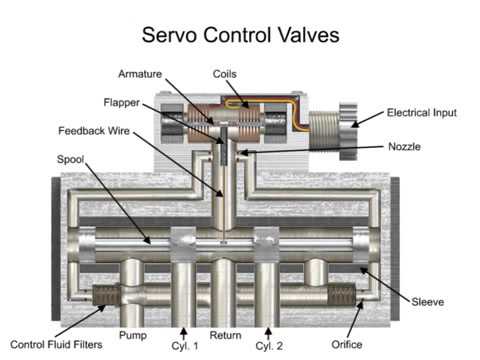

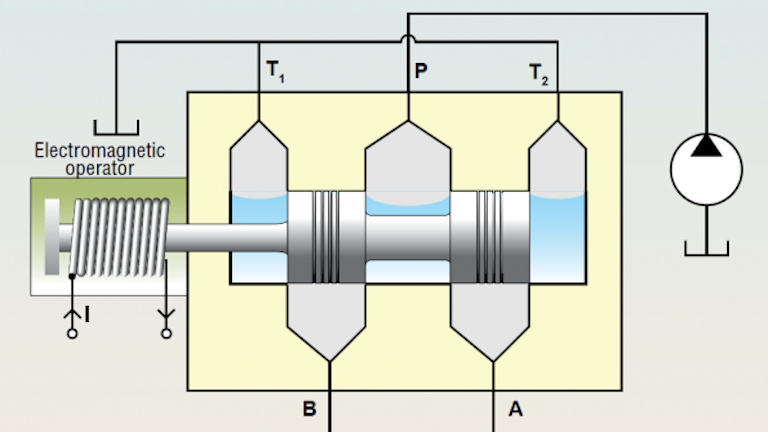

The term servovalve describes a valve design with bushing spool assembly characterized by high precision metering edges.

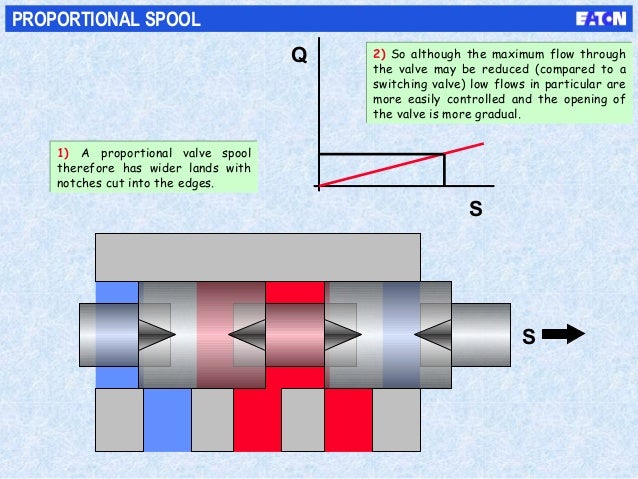

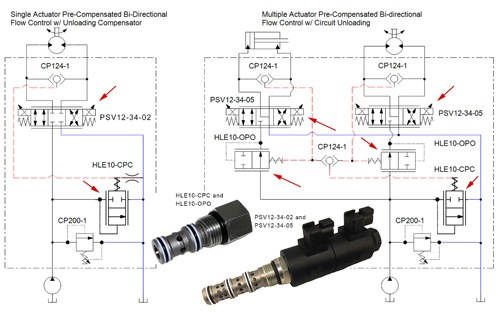

Hydraulic proportional valve animation. Electro proportional basics explained gain a better understanding of the terms used to specify and define our growing line of electro proportional cartridge valves with our on line terms and definitions presentation. This circuit is good for resistive loads only because it meters fluid to the cylinder. Parker proportional valves employ powerful voice coil valve technology which allows higher flows from smaller valves. A proportional throttle valve in the pump line of figure 14 11 controls flow to a standard solenoid valve.

Our valves offer extremely high response of up to 300 hz and are offered with or without on board control electronics. A proportional control valve system can be used to improve control of most machines without the high price tag of servo control systems. On the other hand proportional valves are far less expensive and less susceptible to failure due to contamination. Our valves cover the complete performance range from standard up to maximum dynamics.

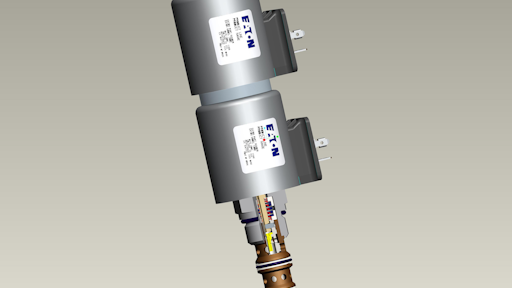

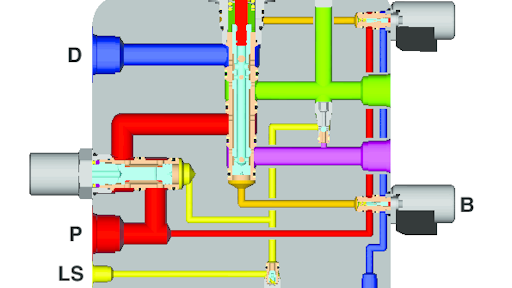

Our process control valves are versatile for various. Proportional valves have slower responses to change and are overall less precise than servo valves. As a result servo valves are always much more expensive. When applied in combination with eaton logic element valves and other sicv in a custom manifold assembly eaton proportional valves create an efficient reliable hydraulic system.

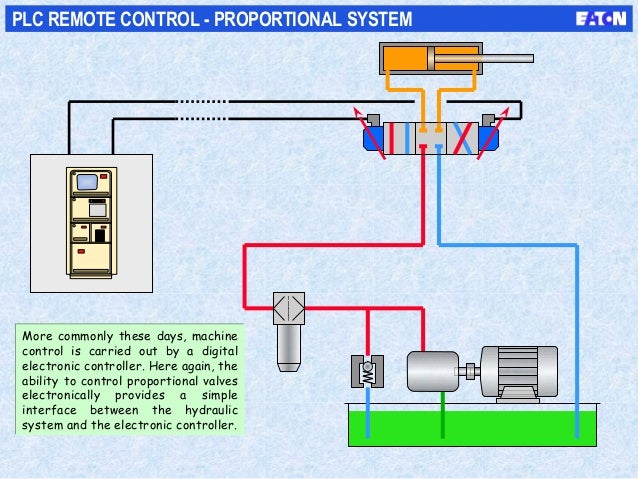

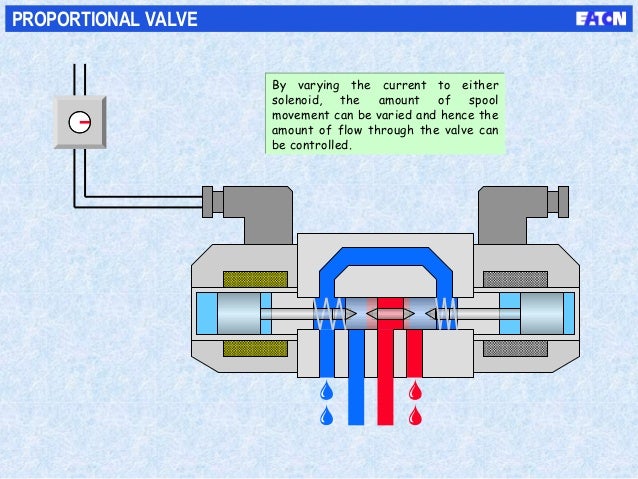

Servovalves and servo proportional valves are electrohydraulic continuously acting valves that transform a changing analog or digital input signal into a stepless hydraulic output flow or pressure. Offers design products and systems for all three types. Terms such as deadband hysteresis linearity and more are explained using easy to understand definitions and graphics. To reduce energy waste use a load sensing pump and sense the line between the proportional valve and the directional valve.

This means that in situations where very fast valve action or very high accuracy are not required a proportional valve is the. Directional proportional and servo valve control systems. Quality hydraulics pneumatics inc.
